It’s more than just accurate modeling when you’re creating a physical part from a computer-aided design (CAD) file. The design needs to be converted into a mold that allows the material to flow, the part to be formed to a desired dimension, and the part to be formed in a repeatable manner. Rapid Tooling is an answer to this and a means of bridging the space between digital engineering and molded elements and decreasing the route. It allows the evaluation of prototypes, design verification, and limited production without the upfront investment needed for high-volume tooling, providing a more flexible and efficient product development process.
- From Digital Geometry to Physical Components
While a CAD model specifies the functional features, size, and geometry a component can have, manufacturing has extra factors to consider. Wall thickness, draft angles, undercuts, gate location, and material shrinkage are examples of factors that can influence a successful molding of a part. These characteristics are assessed by the engineer before tooling starts, and a decision is made as to how the part will be removed from the mold.
This preparation can be used to determine possible defects prior to machining. Some problems that may occur with the finished part are trapped air, uneven filling, difficult ejection, and excessive warping. These problems will be addressed in the design review to avoid unnecessary changes and provide an accurate basis for molding.
- Accelerating Product Development Through Prototype Tooling
Traditional production molds can require a lot of engineering, machining, and finishing. That investment makes them less suitable if the size or kind of product or the material used is still unknown. Rapid Tooling offers an alternative by using simplified mold design, standard mold bases, and the right tooling materials to reduce tool fabrication time.
The molds created can be used to produce functional prototypes and limited quantity production runs. The molded parts can be seen and inspected for fit and assembly, surface and mechanical characteristics, rather than relying only on digital simulation. This feedback can help to address design flaws at an earlier stage and minimize uncertainty before moving into higher production runs.
- Choosing Dependable Rapid Tooling Services for Accurate Molded Parts
For reliable manufacturing, more than just quick mold production is necessary. Reliable rapid tooling services encompass design review, suitable mold building, material suitability, and dimensional checking, all in one integrated process. These facilities are utilized for prototype tooling, bridge tooling, pilot runs, and low-volume production at 3ERP, an ISO 9001:2015-certified manufacturing company since 2010, serving customers worldwide.

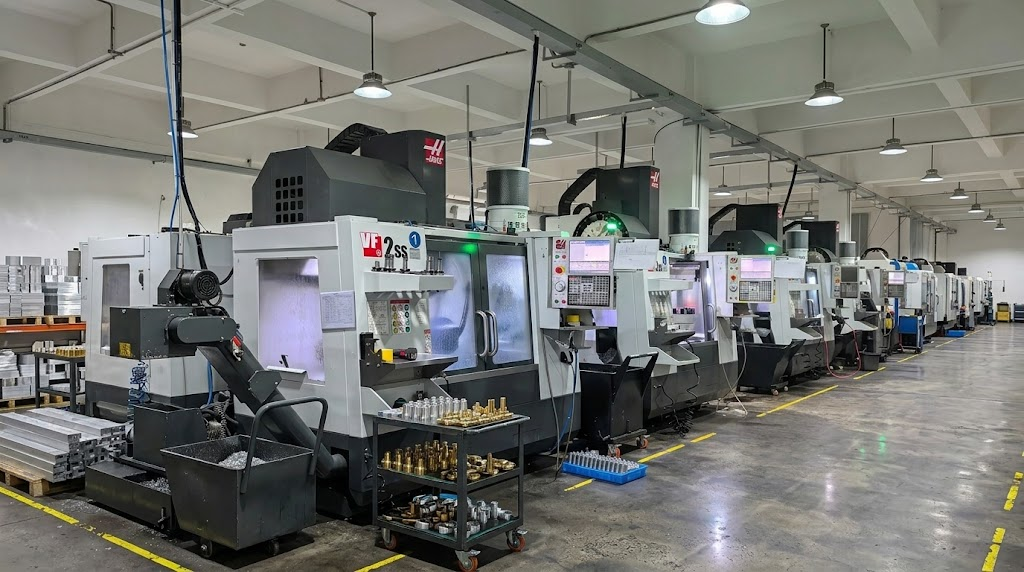

The company makes use of CNC machining and electrical discharge machining (EDM) for creating mold cavities and other tooling features. In some cases, industrial 3D printing can also allow for special geometries or faster development. It can produce more than 100 metals and plastics; dimensional tolerances can be as low as +0.01 mm, depending on the geometry of the part, material, and process conditions.
- Selecting the Right Mold Material for Production Needs
Machining time, mold tooling, heat transfer, durability, and production quantity are all dependent on the type of mold material being used. Aluminium is easy to machine and is heat-conductive; thus, it is a suitable material for prototypes and short production series. The properties can reduce initial tooling costs and development time, but aluminium will wear out more rapidly than steel.
For more demanding molding conditions, or increased durability, pre-hardened steel and softer tool steels can be used. While the initial cost of steel tooling is often higher, and the time to fabricate is longer, it is able to withstand more demanding applications and repeated production cycles. Selection isn’t only based on the material but is based on the number of shots to be fired, the characteristics of the resin, the complexity of the parts, and the pressures under which they will be used.
- Key Benefits of Rapid Tooling for Molded Components
Rapid tooling provides a viable middle-ground between prototype and production. This can be especially useful when a design must be physically tested to make sure that commitments to production are not increased.
- Shorter development cycles: Streamlined mold construction helps move designs from CAD files to molded samples sooner, allowing earlier functional evaluation.
- Controlled development costs: Lower initial tooling investment makes small production batches more economical when expensive production molds are not yet justified.
- Production-relevant materials: Molded prototypes can use thermoplastics and elastomers suited to evaluating real application requirements.
- Design iteration: Engineers can revise mold features after inspecting initial parts, helping resolve dimensional or functional problems.
- Flexible surface finishes: Suitable tooling can produce smooth, glossy, or textured surfaces, with additional finishing applied when required.
- Practical batch production: Rapid tooling supports bridge manufacturing while production tooling is being developed or demand remains limited.
- Matching Molding Materials to Functional Requirements
Material selection should take into account the conditions under which the component will be used, its mechanical stresses, temperature, and surface needs. Common thermoplastics include ABS, polycarbonate, nylon, polypropylene, acetal, PEEK, PET and thermoplastic polyurethane. They each provide varying levels of strength, stiffness, impact resistance, chemical resistance, and processability.
Elastomers and silicone materials offer flexibility in the properties of seals and other parts that need to have a resilient characteristic. The silicone can be of different hardnesses; optical-grade silicone, medical-grade silicone, and fluorosilicone are all available. Selecting materials is a part of the tooling assessment at 3ERP, which is used to ensure that the mold design is in line with the intended application and validation goals.
- Quality Control Throughout the Tooling and Molding Process
No matter how good the design of the mold is, it cannot guarantee all the molded parts are manufactured in the required shape. Quality control should not only address the tooling, but also the parts produced in the moulding process. Critical dimensions, hole locations, surface features, and functional interfaces with the original CAD model and engineering drawings can be inspected.
Process conditions also have an impact on consistency. The injection pressure, melt temperature, cooling time, and ejection parameters need to be adjusted to the material and the geometry of the component to be produced. Dimensional or functional checks help to identify deviations before the parts are passed on to assembly or further testing. 3ERP has inspection processes throughout the production process; inspection of components is done before shipping to the customer so that it can meet the requirements set forth.
- Moving from CAD Design to Production with Confidence
The best approach is for engineers to have clear specifications before manufacturing; this is where Rapid Tooling works best. CAD files, material specifications, critical tolerances, surface finish requirements, and estimated quantities give manufacturers information to plan for the proper tooling strategy. Some common formats include STEP, STP, SLDPRT, IGES, X_T, and STL, but they are acceptable or not depending on the information in each file.
The next step is to do quality control of the molded samples and decide whether any changes are required. Once the design begins to work as expected, the project can proceed to making the bridge or to a production mould. This staged approach allows us to manage the technical risks and gives flexibility to the requirements as they change.
Conclusion
The CAD-to-reliable-molded-parts process involves coordinated engineering, proper materials for the tooling, correct tooling, and inspection. Rapid Tooling can aid with this transition by enabling functional validation and minimal production without having to invest in high-volume tooling upfront. Companies can identify issues early, evaluate real material performance, and make informed production decisions through appropriate design preparation and manufacturing processes. This results in a steadier path from digital concept to physical components to scaling up for manufacture.
